1/2 Inch Polypropylene Bolted

AOD 150 PF PP

TYPICAL INDUSTRIES

Mining, Paints and Coating, Ceramics, Pulp and Paper, Electroplating & Anodizing, Waste water, Marine, Chemical Manufacturing & Distribution, Oil & Gas, Food & Beverage, OEM'S

AIR VALVE ASSEMBLY OPTIONS
Power Flow Accu Flo Non-stalling Valve

SPECIFICATIONS

Suction & Discharge Size
1/2" X 1/2"
Standard Porting Location
End
Connection Types
BSP / NPT
Air Inlet & Air Exhaust Size:
6mm( 1/4 ") X 13mm 1/2"
Maximum Flow Rate
58.7lpm(15.5gpm)
Maximum Air Supply Pressure
120 psi (8.3 bar)
Displacement Per Stroke
0.11l (0.029 gal)
Maximum Particle Size
1.6mm(1/16")
Suction Dry:
5.5m(17.0')
Suction Wet:
8.7m(28.4')

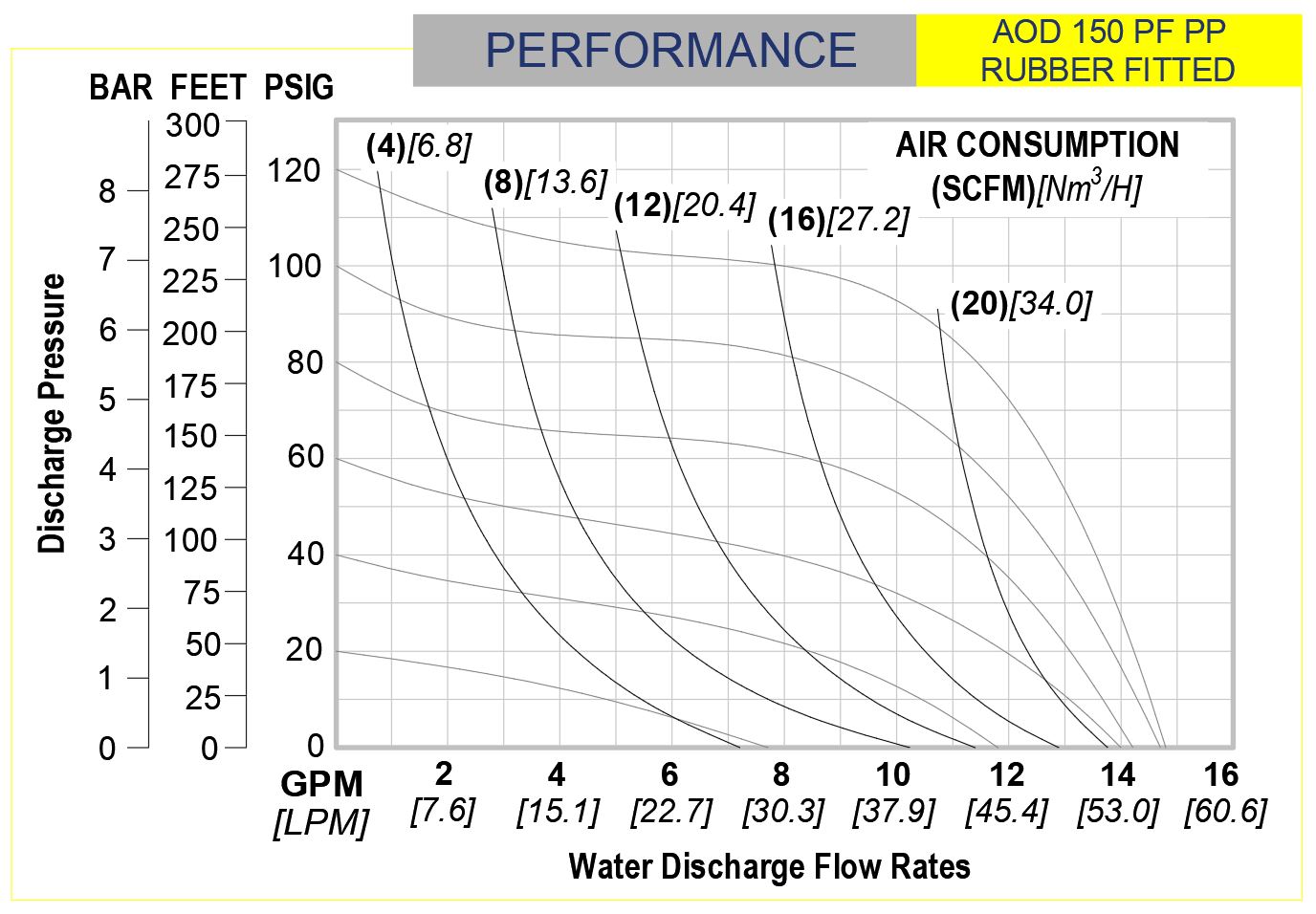

PERFORMANCE CHART

Note: Full Stroke diaphragm allows performance to be equal for all elastormers.

CONSTRUCTION

Wetted Materials
Polypropylene, PVDF
Diaphragm Materials
Buna, Neoprene, Santoprene™, Hytrel, FKM, EPDM, PTFE, Polyurethane.
Air Valve
Polypropylene
Ball Materials
PTFE, Neoprene, Santoprene™, FKM, 316SS.
Seat Materials
Polypropylene
O-ring Materials
Neoprene, Buna, PTFE, EPDM

Santoprene™ is a registered tradename of Exxon Mobile Corp.
Hytrel® is a registered tradename of dupont™

SHIPPING

Maximum Height
340mm(13.39")
Maximum Width
240mm(9.45")
Maximum Depth
270mm(10.63")
Weight: Polypropylene
5.2 Kg
Weight: PVDF
6.6 Kg

DIMENSIONS
