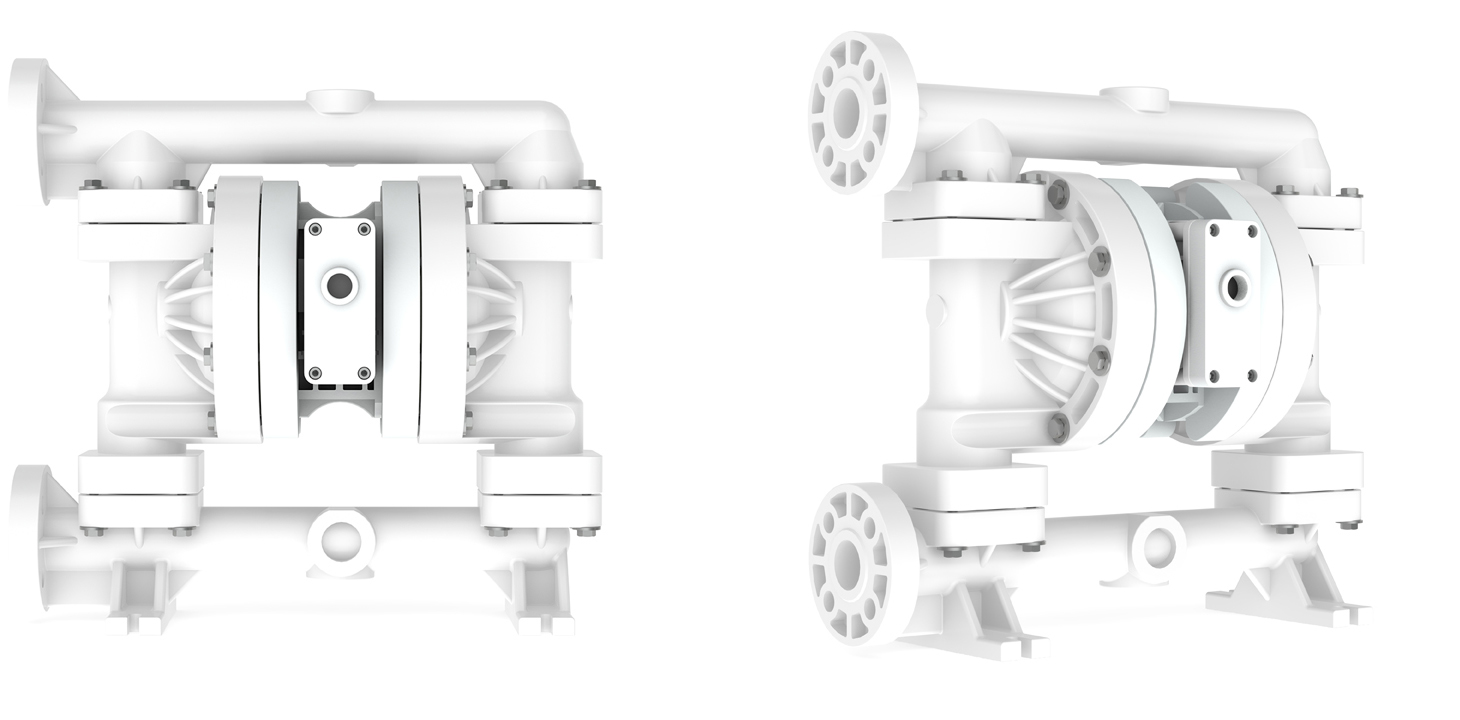

1 Inch PVDF Bolted

AOD 250 PF PVDF

TYPICAL APPLICATIONS

Acids & Bases Plating Solutions, Waste Water, Paints, Inks, Solvents, Ceramic Slip and Glaze, Lubricants and Oils, Dairy, Meat & Poultry Processing, Personal Care

TYPICAL INDUSTRIES

Mining, Paints and Coating, Ceramics, Pulp and Paper, Electroplating & Anodizing, Waste water, Marine, Chemical Manufacturing & Distribution, Oil & Gas, Food & Beverage, OEM'S

AIR VALVE ASSEMBLY OPTIONS
Power Flow

SPECIFICATIONS

Suction & Discharge Size
1" X 1"
Standard Porting Location
End
Connection Types
ANSI
Air Inlet & Air Exhaust Size:
6mm( 1/4 ") X 13mm 1/2"
Maximum Flow Rate
220lpm(58gpm)
Maximum Air Supply Pressure
120 psi (8.3 bar)
Displacement Per Stroke
0.32l (0.086 gal)
Maximum Particle Size
4.76mm(3/16")
Suction Dry:
3.6m(11.9')
Suction Wet:
9.1m(30.0')

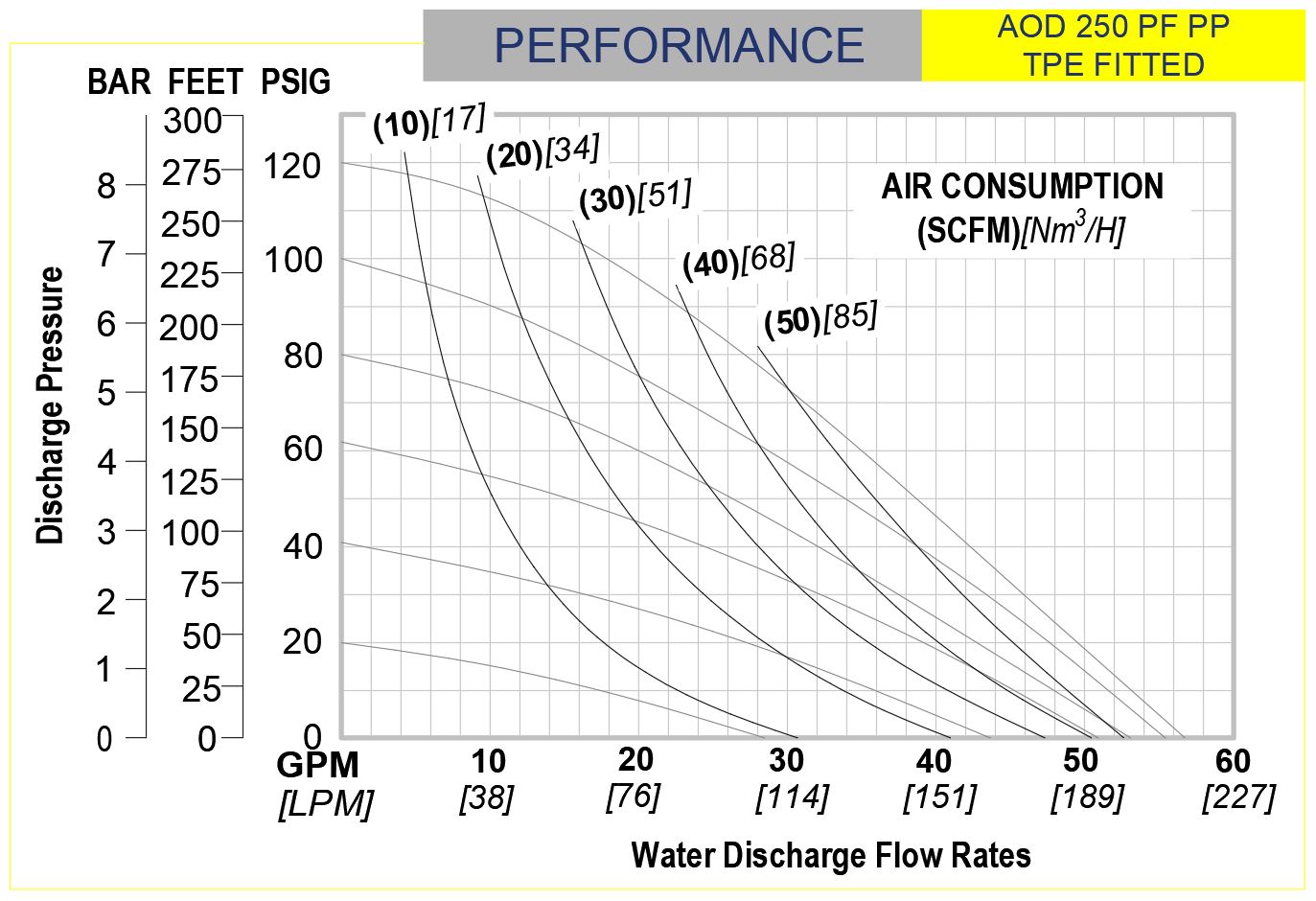

PERFORMANCE CHART

Note: Full Stroke diaphragm allows performance to be equal for all elastormers.

CONSTRUCTION

Wetted Materials
Polypropylene, PVDF
Diaphragm Materials
Buna-N,Neoprene, Santoprene, Hytrel, PTFE, Polyurethane.
Air Valve
Polypropylene
Ball Materials
PTFE. Neoprene, 316SS.
Seat Materials
Polypropylene
O-ring Materials
Neoprene, PTFE, EPDM

SHIPPING

Maximum Height
480mm(18.9")
Maximum Width
270mm(10.6")
Maximum Depth
490mm(19.3")
Weight: Polypropylene
13 Kg
Weight: PVDF
16.5 Kg

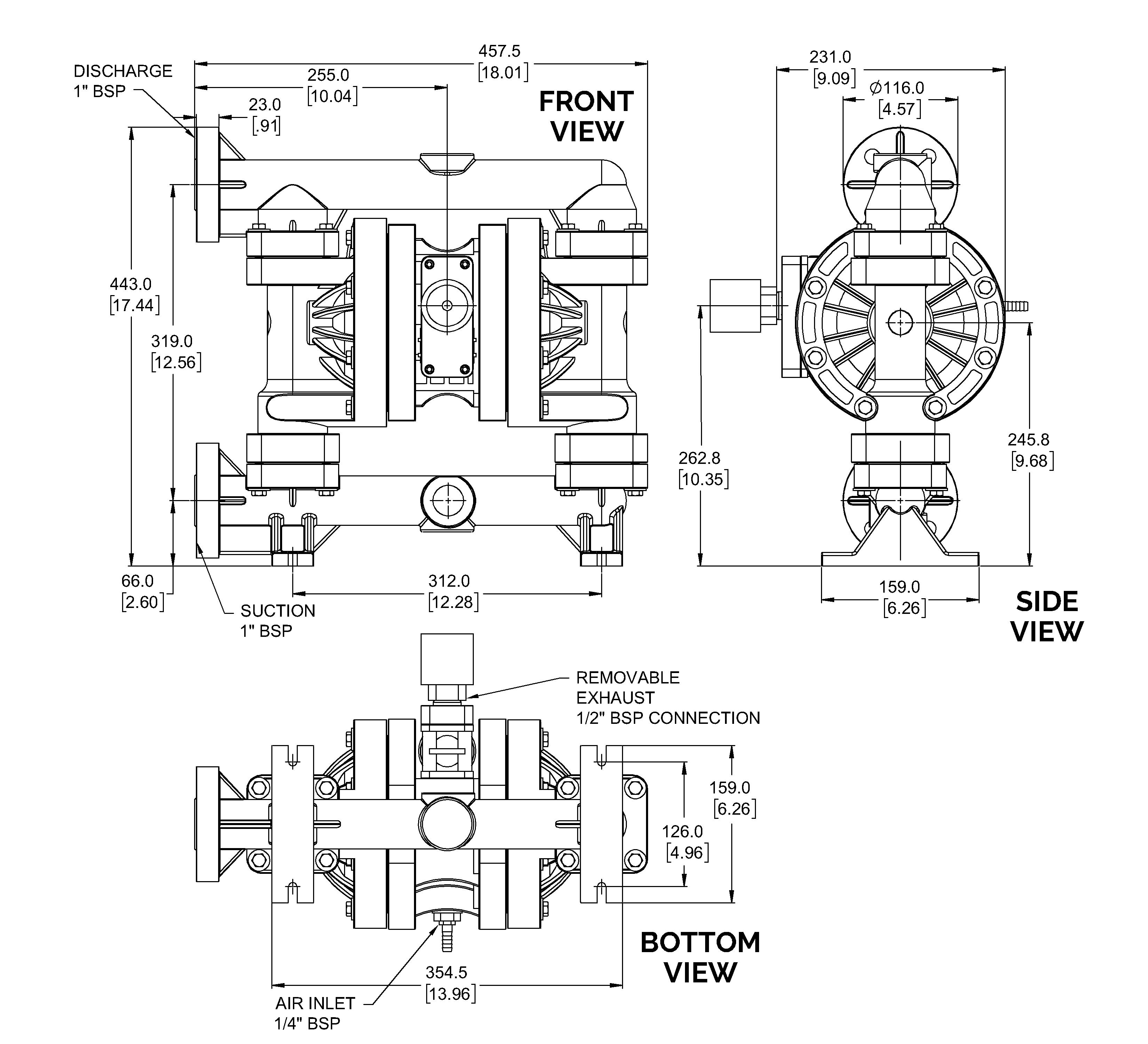

DIMENSIONS

LITERATURE

AOD 250 PF KTT
AOD 250 PF PTT
AOD 250 PFF PST
AOD 250 PFF PTT
